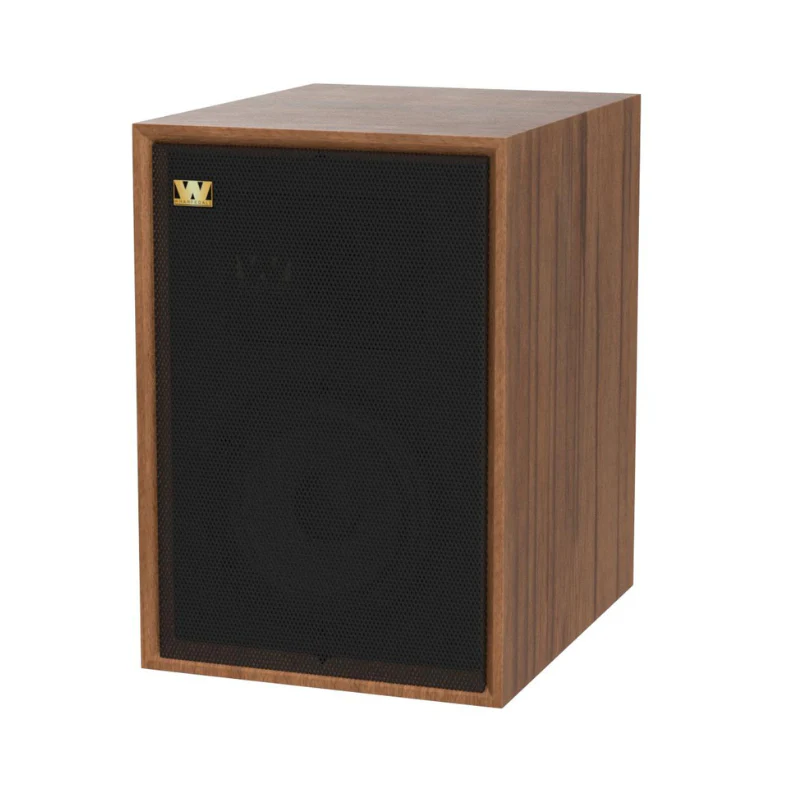

| Model | SUPER DENTON |
|---|---|
| General description | 3-way vented-box/standmount |
| Enclosure type | Bass Reflex |
| Transducer complement | 3-way |
| Bass driver | 6.5″ (165mm) Black Woven Kevlar Cone |
| Midrange driver | 2″ (50mm) Soft Dome |
| Treble driver | 1″ (25mm) Soft Dome |
| Sensitivity (2.83V @ 1m) | 87dB |
| Recommended amplifier power | 25-120W |
| Peak SPL | 103dB |
| Nominal impedance | 6Ω (Compatible 8Ω) |
| Minimum impedance | 3.4Ω |
| Frequency response (+/-3dB) | 52Hz – 20kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 940Hz & 4.6kHz |
| Cabinet Volume (in litres) | |
| Dimensions (mm) | 14.7L |
| Height (on plinth) | 360mm |
| Width | 246mm |
| Depth (with terminals) | (275+20)mm |
| Carton size | 660*390*475mm |
| Net weight | 9.2kg/pcs |
| Gross weight | 21kg/ctn |
